Product Parameters
| Product Name | Thermoforming Vacuum Packaging Machine |
|---|---|
| Model | 520T |
| Upper film width | 492mm |
| Lower film width | 522mm |
| Vacuum level | ≤200pa |
| Pneumatic pressure | 0.6-0.8mpa |
| Voltage | 380V / 50HZ / 3相 |
| Power | 18kw |
| Cooling water | 1.5-3bar |
| Packing speed | 4-8 Times/Min |
| Max. film roll diameter | 300mm |
| Dimension (L×W×H) | 6200×1180×1850mm |
| Weight | 2000kg |

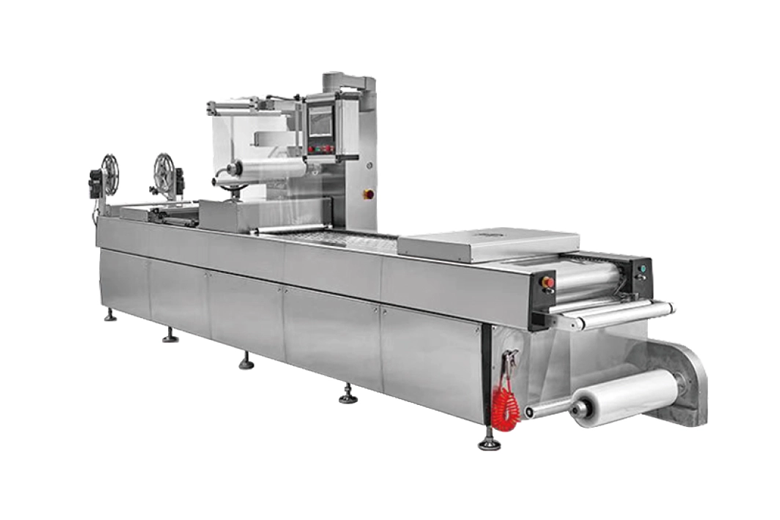

The 520T Automatic Thermoforming Packaging Machine is a reliable and efficient solution for high-quality packaging needs. With an upper film width of 492mm and a lower film width of 522mm, it is designed for versatility, accommodating products of various sizes. Operating at a vacuum level of ≤200pa and pneumatic pressure of 0.6-0.8mpa, this machine ensures secure and precise sealing. Its energy-efficient 18kW motor and 380V/50Hz/3-phase configuration enable packing speeds of 4-8 times per minute.
Built for durability, the Vacuum Thermoforming Packaging Machine supports up to 300mm film roll diameter and features compact dimensions of 6200×1180×1850mm. Perfect for industries like food and electronics, it combines automation and sustainability for optimal performance and cost efficiency.
Features
Wide Application Range: The automatic thermoforming packaging machine is ideal for packaging food, medical devices, electronics, and industrial products, offering flexibility for various industries.
User-Friendly Interface: Equipped with a PLC touch-screen control system, it allows quick and intuitive parameter adjustments for seamless operation.
Flexible Packaging Capabilities: Customizable molds and settings allow the machine to package products of various sizes and shapes, making it a multipurpose solution for high-volume production.
Enhanced Safety Features: Includes comprehensive protection systems such as vacuum pressure monitoring, sealing temperature control, and emergency stop mechanisms to ensure smooth and safe operation.
Food-Grade Materials: Built with food-grade 304 stainless steel, meeting strict sanitation and safety standards for reliable use.
Robust Construction: A durable frame made from high-quality industrial aluminum with anti-corrosion coating ensures long-lasting performance, even under demanding conditions.
Energy-Efficient Design: Integrated with energy-saving motors and optimized components to reduce power consumption without compromising performance.
Versatility: Capable of packaging a wide array of products, including food items, medical devices, and industrial components, this machine adapts seamlessly to various operational needs.
Customizable and Precise: Supports tailored mold designs to handle products of different sizes and shapes, ensuring secure and professional packaging.
High Productivity: The vacuum thermoforming packaging machine automates the packaging process, reducing labor costs and increasing production speed.
Hygiene and Compliance: Engineered with food-safe materials and compliant with CE, ISO, and FDA standards, it is ideal for industries with stringent sanitation requirements.
Simplified Maintenance: Thoughtfully designed for easy cleaning and servicing, with accessible components and detailed diagnostics, ensuring long-term performance with minimal effort.
Sustainability Focus: The vacuum thermoforming packaging machine uses energy-efficient technology to reduce costs and lower carbon footprints.
Processing Workflow
The 520T Automatic Thermoforming Packaging Machine ensures a smooth and efficient packaging process:
Heating and Forming: The bottom film is heated and stretched to form cavities, a key feature of this advanced automatic thermoforming technology.
Product Loading: Products are placed into the formed cavities, ready for secure packaging.
Vacuum or Gas Packaging: The vacuum thermoforming packaging machine removes air or injects protective gas to preserve product freshness and quality.
Sealing: The top film is heat-sealed to the bottom film, ensuring airtight and durable packaging.
Cutting: The sealed film is horizontally cut into individual packages, achieving precision and consistency in every cycle.
This process highlights the machine’s versatility and high performance for diverse packaging needs.
Service and Support
At Kairui Machinery, we are committed to providing comprehensive service and support for our vacuum thermoforming packaging machine to ensure customer satisfaction and seamless operation.
Consultation Support: Our professional team offers detailed consultations to help you choose the right machine for your specific needs.
Sample Testing Support: We provide sample testing to demonstrate the machine’s performance and ensure it meets your expectations.
Factory Visit: Customers are welcome to visit our factory to explore our production processes and gain insights into our advanced technology.
Installation and Training: We offer on-site installation and training to ensure your team can operate the machine efficiently.
Operation Training: Comprehensive user training is provided to maximize the performance of the vacuum thermoforming packaging machine.
Overseas Engineer Support: Our experienced engineers are available for overseas service, ensuring quick resolution of technical issues and long-term operational reliability.
With our reliable support system, you can confidently rely on Kairui Machinery for your packaging solutions.
